OxyData - P
for Oxygen Generator Plants and Medical Gas Pipeline-Fixed Panel mounted
Key Parameters

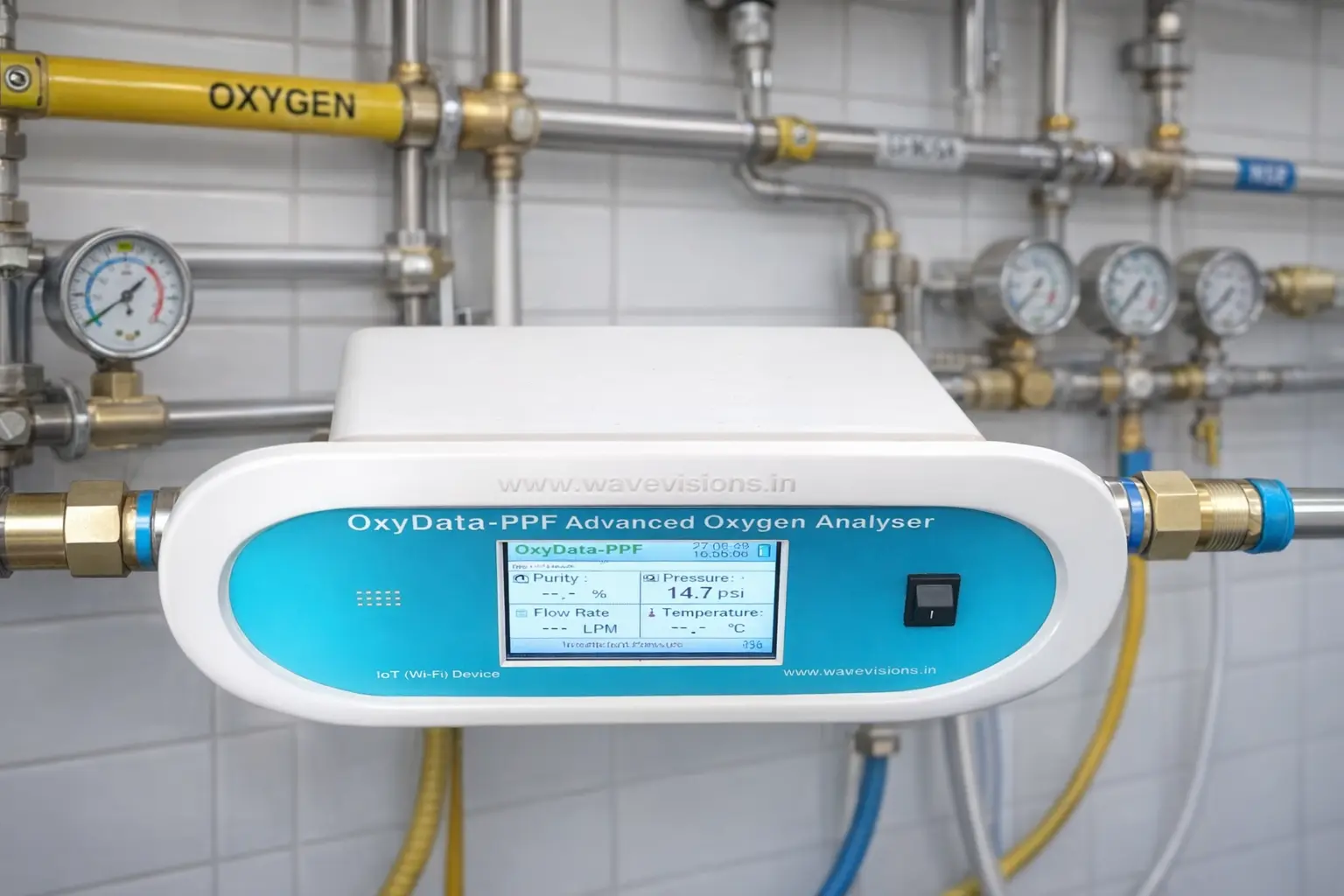

Real-Time Gas Pipeline Oxygen Analyzer for Pressurized Pipelines
Ensure optimal performance and safety with our advanced system that continuously measures oxygen purity on pressurized pipelines. The panel version offers real-time monitoring, along with Current Flow Rate and Oxygen Gas Consumption Tracking, helping you maintain precise control, optimize usage, and stay compliant with industry standards.
Oxygen Generator Plant
Oxygen Gas Pipeline
Hospital, ICU, OT, etc…
| Measured Parameter / Model number | OxyData - P | OxyData - PP | OxyData - PPF |
|---|---|---|---|
|
Oxygen Purity |
0-100 % |
0-100 % |
0-100 % |
|
Pressure |
– |
0-100 PSI
|
0-100 PSI
|
|
Flow Rate |
– |
– |
0-100/200/500/700
LPM |
|
Oxygen Gas Consumption Monitoring (Daily/Monthly/Weekly) |
– |
– |
0-1 Trillion Liter |
|
Temperature |
0-50 0C |
0-50 0C |
0-50 0C |
Features Overview
- Accurate real-time continuous monitoring of Oxygen Purity, Pressure & Flow rate
- Accurate real-time continuous monitoring of Oxygen Purity, Pressure & Flow rate
- All electronic sensors, No calibration required
- User adjustable High-Low alarms for Oxygen Purity, Pressure, Flow Rate
- Built-In rechargeable battery with Battery Backup of 6-8 hours
- Android Mobile App via Wi-Fi / Bluetooth for live trend, PDF report generation and printing from your mobile
Specifications Details
- Measurement - Oxygen Purity : 0 % to 100 % with 2 % accuracy, 0.1 % resolution
- Measurement - Pressure : 0-7 bar (0 to 100 PSI) with 1% accuracy, 0.1 PSI resolution
- Measurement - Flow Rate : 0 – 100/200/500/700 LPM with 5% accuracy, 1 LPM resolution
- Oxygen Gas Consumption Monitoring (Daily/Monthly/Weekly) - 0-1 Trillion Liter
- Pipeline pressure for Oxygen Purity measurement : 3 to 7 bar ( 45 PSI to 100 PSI )
- Optional: 0-5 V / 4-20 mA output for Oxygen Purity
- Optional: Potential free relay contacts for Alarm of Purity / Pressure / Flow Rate
- Display : Color LCD with Touch screen
- Mains Supply : 100 – 240 V AC or 24 V DC
- Battery : Built-in, rechargeable, can work for 6-8 Hours after power off
- Dimensions : 280 mm x 120 mm x 120 mm, Weight : 1 Kg
Other OxyData Models
OxyData - G
for Oxygen Generator Plants and Medical Gas Pipeline-Spot checking-Handheld
OxyData - C
for Oxygen Concentrator and Oxygen Delivery Monitoring
OxyData AV
for Ambient Air & Ventilator, Oxygen Hood Monitoring
OxyData Android App
Get Ready To Monitor Oxygen Data Effortlessly with OxyData
?
?
?
People Also Ask
Frequently Asked Questions (FAQs)
1. What does a Medical Oxygen Pipeline Analyzer measure, and why is it important?
A Medical Oxygen Pipeline Analyzer measures oxygen purity, pressure, flow rate, and flow consumption in real time. OxyData PPF combines all these parameters in one device to provide complete monitoring of hospital oxygen pipelines.
2. Can an Oxygen Analyzer for Hospital Pipelines work directly on medical gas pipelines?
Yes. Oxygen analyzers for hospital pipelines are designed for in-line installation on pressurized medical gas pipelines. OxyData PPF is suitable for oxygen generator plants, MGPS systems, ICUs, and operation theatres
3. What pressure range can a Hospital Oxygen Monitoring System monitor accurately?
Hospital oxygen monitoring systems should work under actual operating conditions. OxyData PPF supports monitoring at real pipeline pressures up to approximately 60 PSI.
4. How accurate and reliable is a Medical Gas Pipeline Monitoring System?
A Medical Gas Pipeline Monitoring System should provide accurate oxygen, pressure, and flow monitoring. OxyData PPF uses calibrated monitoring with long-life electronic sensors for dependable performance.
5. Does a Medical Oxygen Monitoring Device require regular calibration or maintenance?
No. OxyData PPF uses long-life embedded sensors that minimize calibration requirements and reduce maintenance efforts.
6. What happens to an Oxygen Plant Monitoring System during a power failure?
OxyData PPF includes a built-in rechargeable battery backup that provides approximately 6 to 8 hours of monitoring during power failures.
7. Does a Hospital Oxygen Monitoring System provide alerts for abnormal conditions?
Yes. OxyData PPF provides audio and visual alarms for oxygen purity deviations, pressure fluctuations, and flow abnormalities.
8. Can a Medical Oxygen Pipeline Analyzer be monitored remotely?
Yes. Using the OxyData mobile app with internet connectivity, OxyData PPF allows remote monitoring, trend tracking, and report generation.
9. Does an MGPS Monitoring System support data logging and reporting?
Yes. OxyData PPF supports continuous data storage, graphical trend analysis, and report generation, useful for audits and NABH compliance.
10. Is the display of a Medical Oxygen Monitoring Device easy to use in hospitals?
Yes. OxyData PPF features a big color touch screen display designed for easy monitoring and operation in hospital environments.
11. How is a Medical Oxygen Pipeline Analyzer different from traditional oxygen analyzers?
Traditional oxygen analyzers often monitor only one parameter but OxyData PPF monitors oxygen purity, pressure, flow rate, & consumption in one device.
12. Where can a Medical Gas Pipeline Monitoring Device be used?
OxyData PPF can be used in oxygen generator plants, MGPS systems, ICUs, operation theatres, hospitals, and healthcare facilities.
13. How easy is the installation of an Oxygen Analyzer for Hospital Pipelines?
OxyData PPF is a panel-mounted device with integrated sensors, allowing simple installation within existing pipeline systems.
14. Is a Hospital Oxygen Monitoring System useful for compliance and audits?
Yes. With data logging and reporting features, OxyData PPF supports hospital audits, documentation, and compliance requirements.
15. What support and warranty are provided with a Medical Oxygen Monitoring Device?
OxyData PPF includes a 2-year warranty, long-life sensors, and technical support for installation and usage.
Get your OxyData Device Today
Innovate the Intelligence of Monitoring Oxgyen Data with OxyData
Advanced Oxygen Analyser is a medical device which can check all these parameters, monitor along with alarms.
